- Quad 3rd Gen. Intel® Xeon® Scalable Processors
- Supports up to 4 x double slot GPU cards
- 6-Channel RDIMM/LRDIMM DDR4 per processor, total 48 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Dual 10Gb/s LAN ports (Intel®X710-AT2)
- 1 x Dedicated management port
- 10 x 2.5″ NVMe/ SAS/ SATA hot-swappable HDD/SSD bays
- 1 x M.2 with PCIe Gen3 x2 bandwidth
- 6 x PCIe Gen3 expansion slots
- 1 x OCP Gen3 x16 mezzanine slots in front side
- 2+0 3200W 80 PLUS Platinum power supply
4-way 3rd Gen Intel® Xeon® Scalable Processors
GIGABYTE R292 series server supports four 3rd Gen Intel® Xeon® Scalable processors. Each processor can perform data transfer or share workload at 20.8GT/s with the other three processors on the motherboard. Its breakthrough computing power can be used to power mission-critical application at scale and analyze growing data at extraordinary speeds.
3rd Gen Intel® Xeon® Scalable processors deliver industry-leading, workload-optimized platforms with built-in AI acceleration, providing a seamless performance foundation to help speed data’s transformative impact, from the multi-cloud to the intelligent edge and back.

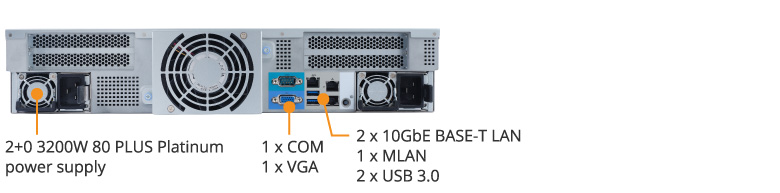

R292-4S0 Product Overview
R292-4S0 System Block Diagram
Intel® Optane™ Persistent Memory Ready
GIGABYTE’s 3rd Gen Intel® Xeon® Scalable family servers come ready to support Intel® Optane™ Persistent Memory 200 Series. New Intel® Optane™ persistent memory 200 series represents a groundbreaking technology innovation. Delivered with all-new 3rd Gen Intel® Xeon® Scalable processors, this workload-optimized technology will help businesses extract more actionable insights from data—from cloud and databases, to in-memory analytics and more.Compared to the first generation, the Intel® Optane™ persistent memory 200 series delivers an average of 25% higher memory bandwidth.
Note: the maximum number of PMem that can be installed per system and the DIMM slot positions that can be used for PMem will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.
Carefully Selected Components
GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.
Design Features for Easy Maintenance
GIGABYTE platforms contain many tool less design features for easy installation, maintenance and removal – never worry about forgetting your toolbox or losing a screw again!
Tool-less Rail Kits
Rail kits attach to the side of the server chassis via clipping mechanism.
Tool-less 2.5” & 3.5” Drive Bays
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Efficient, Reliable Power Supply
GIGABYTE server are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power : performance ratio and reduces OPEX for the user.
Intelligent Power Management Features
SCMP (Smart Crises Management / Protection)
SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost. In a 2U 4 Node server, only two nodes will be switched to low power mode, while two remaining nodes can continue normal operation. When the fault is resolved or the PSU is replaced, the system will automatically return to normal power mode.

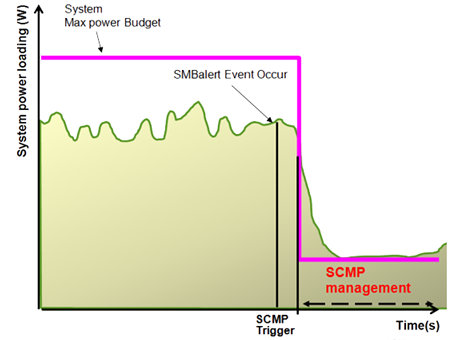

System Loading Curve
GIGABYTE Management Console
GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.
- RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
- Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
- Detailed FRU information from SMBIOS
- 10 to 30 seconds pre-event automatic recording function
- SAS / RAID controller monitoring function
GIGABYTE Server Management (GSM)
GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:
- GSM Server
A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
- GSM CLI (GBT Utility)
A command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.
- GSM Agent
A software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
- GSM Mobile
A remote server management mobile APP, available for both Android and iOS.
- GSM Plugin
A plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.
Automatic Fan Speed Control
To achieve the best cooling and power efficiency, GIGABYTE servers are enabled with automatic fan speed control. Individual fan speed will be automatically adjusted according to CPU, DIMM, M.2, HDD, and GPU temperature sensors. When BMC detects a temperature change at a particular location, the corresponding fan speed will be changed accordingly.
Certified Ready with Software Partners
Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

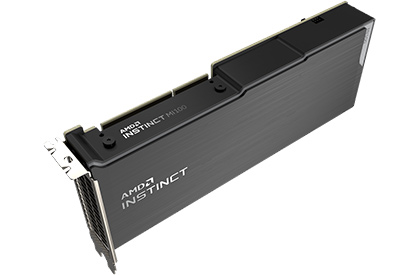

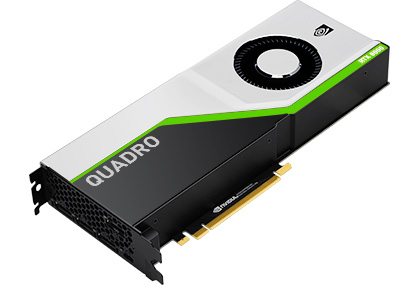

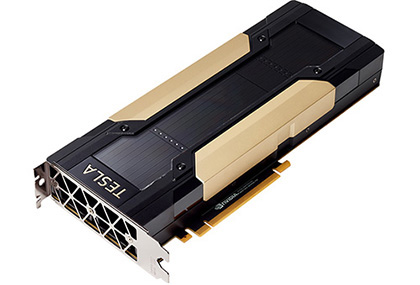

Support Various Computing Accelerators
GIGABYTE servers have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for deep learning, high performance computing (HPC), enabling data scientists, researchers, and engineers to tackle challenges that were once impossible.
