Red Barn HPC 2U UP 8 x Gen3 GPU Server

From: $5,405.75

HPC Server – 2U UP 8 x Gen3 GPU Server | Application: AI , AI Training , AI Inference & HPC
  • Supports up to 8 x double slot GPU cards
  • AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology
  • AMD EPYC™ 7003 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • 2 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-4 Lx controller
  • 1 x Dedicated management port
  • 6 x 2.5″ SATA and 2 x 2.5 NVMe/SATA hot-swappable HDD/SSD bays
  • 2 x M.2 with PCIe Gen3 x4/x2 interface
  • 8 x PCIe Gen3 expansion slots for GPU cards
  • 2 x PCIe Gen4 x16 low-profile half-length slots for add-on cards
  • Aspeed® AST2500 remote management controller
  • 2+0 2200W (240V) 80 PLUS Platinum power supply

Nothing Stacks Up To EPYC™

AMD EPYC™ 7003 Processors with AMD 3D V-Cache™

AMD EPYC 7003 Series Processors with AMD 3D V-Cache™ technology are raising the bar once more for breakthrough performance on targeted technical computing workloads like Electronic Design Automation, Computational Fluid Dynamics, and Finite Element Analysis software and solutions. Delivering breakthrough performance per core and performance per watt, the Zen 3 architecture maintains leadership in number of cores – up to 64, amount of L3 cache – 768MB, and 128 PCIe 4.0 lanes, while maintaining socket compatibility with existing 3rd Gen AMD EPYC platforms.

Zen 3Architecture

768MBL3 Cache Per Socket

Up To 64“ZEN 3” Cores

128PCIe 4.0 Lanes

Architecture for Modern Data Centers

AMD EPYC™ 7003 Series Processors

GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.

  • Up to 64 Cores
  • 8 Channels of DDR4-3200
  • Up to 4TB Memory Capacity
  • 128 lanes PCIe 4.0
  • 2-way SMT & Turbo Boost
  • 4,6,8-channel Memory Interleave
  • Synchronized Fabric and Memory Clock Speeds
  • Secure Memory Encryption
  • Secure Encrypted Virtualization

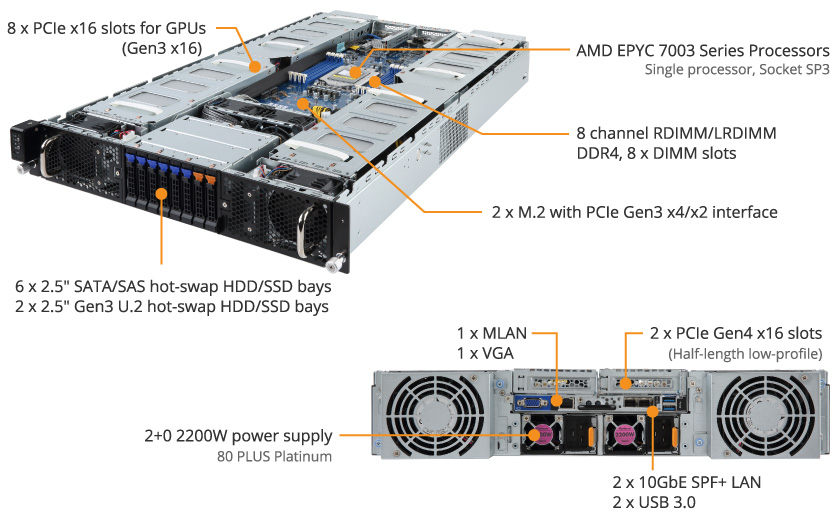

G292-Z22 Product Overview

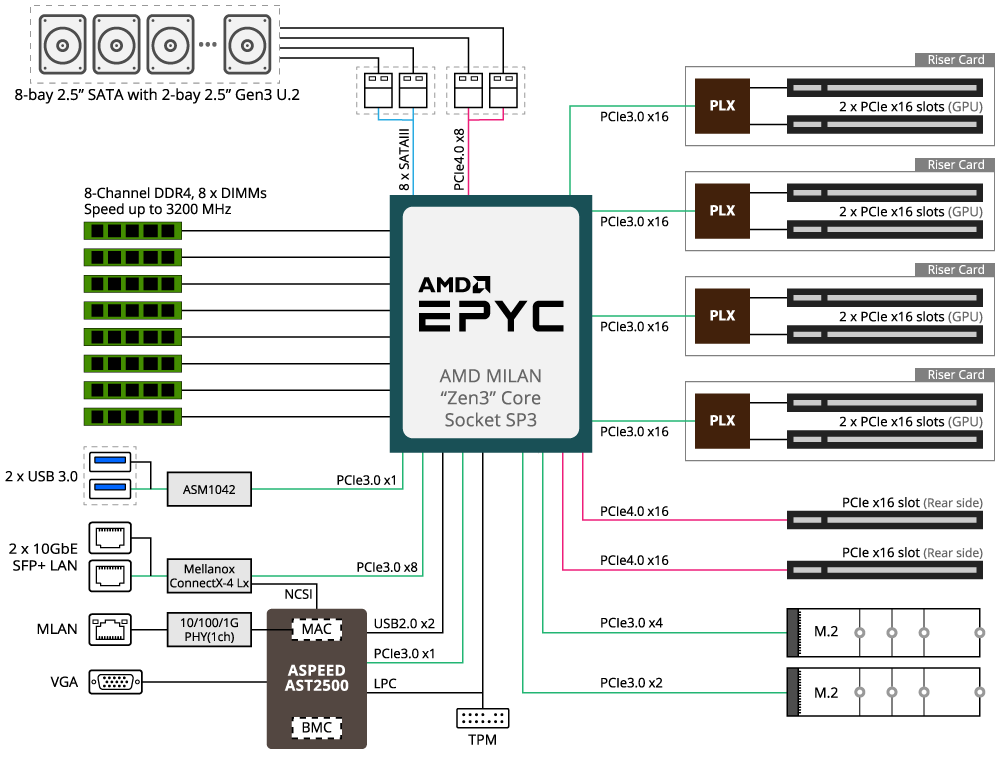

G292-Z22 System Block Diagram
