Gigabyte R282-3C2

$2,977.00

3rd Gen. Intel® Xeon® Scalable DP Server System – 2U 12-Bay Gen4 NVMe | Application: General Purpose/HPC
  • 3rd Gen. Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture supported
  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • Intel® C621A Express Chipset
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 8 x 3.5″ or 2.5″ SATA/SAS hot-swappable HDD/SSD bays
  • 4 x 3.5″ or 2.5″ SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
  • 2 x 2.5″ SATA/SAS hot-swappable HDD/SSD bays in rear side
  • 8 x PCIe Gen4 expansion slots
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1600W (240V) 80 PLUS Platinum redundant power supply

Where Compute Reigns

3rd Gen Intel® Xeon® Scalable Processors – “Ice Lake”

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

  • Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
  • CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel’s 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
  • Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements. Additionally, support for Intel Optane PMem 200 series provides two modes for greater memory capacity and data persistence to process large amounts of data faster.
  • Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
  • AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.

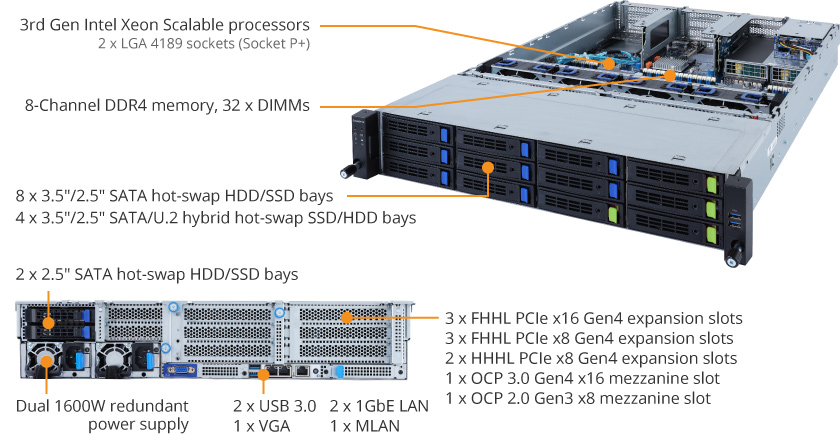

R282-3C2 Product Overview

R282-3C2 System Block Diagram
