• Supports up to 8 x double slot GPU cards
  • NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
  • Compatible with Intel® Visual Compute Accelerator
  • Intel® Xeon® processor E5-2600 V3 / V4 product family
  • 2 x 10GbE SFP+ ports (Intel® 82599ES)
  • 8 x 2.5″ hot-swappable HDD/SSD bays
  • 80 PLUS Platinum 2000W redundant PSU

Intel® Xeon® Processor E5-2600 V4/ V3 Product Family

Based on the Haswell microarchitecture, these new Intel processor families bring a whole new set of performance boosting features. In addition to the usual boost in frequencies and core numbers, the Intel Xeon processor E5-2600 V4/ V3 product family are the first in the industry to support the DDR4 memory technology.

Moreover, these new processors include encryption performance overhead reduction features, and technologies improving run time and migration VM integrity.

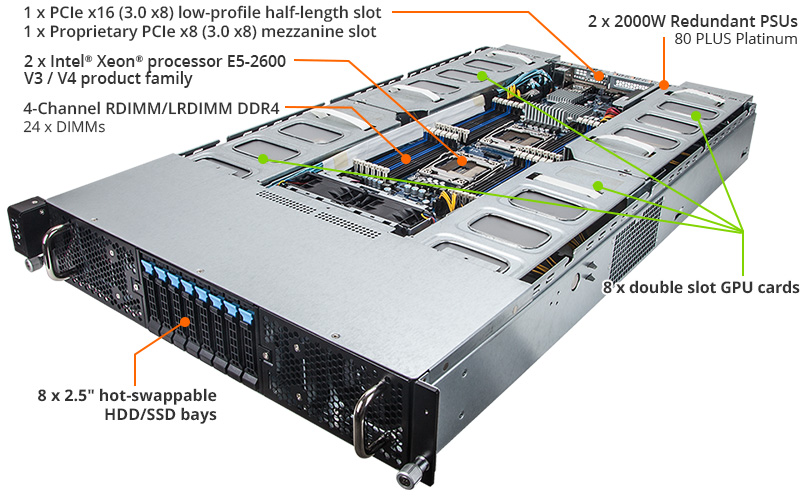

G250-G51 Product Overview

High Density HPC

8 x Computing Cards

With the unique ability to receive up to 8 double slot GPGPU or co-processor cards, the G250 opens the door to new records in teraflops performance within a 2U chassis. It is therefore one the best solutions to accelerate development and programs in scientific simulation & modeling, engineering, visualization & rendering, data mining, and much more.

Ethernet LAN Bandwidth Flexibility

Built with a dual 10Gb/s SFP+ LAN controller, the G250-G51 can receive an additional proprietary LAN card sporting another dual 10Gb/s controller or a dual 56Gb/s controller.
The network capabilities of the system can therefore be tailored for the needs of its target applications.

Onboard Dual 10Gb/s SFP+ Ports

Capable of load-balancing, FCoE support, and low latency transfers, the default LAN controller of the G250-S88 is a top performing network solution for demanding network environments.

Dual QSFP+ Ports Card in Option

  • Model: GC-MNXE2
  • Mellanox® MT27508A1-FCCR-FV controller
  • 2 x QSFP+ LAN ports
  • Supports 56Gb/s FDR InfiniBand, 40GbE Ethernet and Data Center Bridging links
  • Virtual Protocol Interconnect
  • 1us MPI ping latency
  • PCIe Gen3 x8 bandwidth

Dual 10GbE SFP+ Card in Option

  • Model: GC-MNXE20
  • Mellanox® MT27518A1-FCCR-XE controller
  • 2 x SFP+ LAN ports
  • Supports Ethernet and Data Center Bridging links
  • PCIe Gen3 x8 bandwidth

DDR4 Memory Support

The Intel Xeon E5-2600 V4/ V3 product families are the first wave of server processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:

+50%Bandwidth Performance
-35%Power Consumption @ 2DPC
-50%Power Consumption @ 3DPC

Memory Frequency

Get the Memory Performance Edge

On the previous server platforms from Intel, the maximum supported memory frequency has always been automatically downgraded by design when more DIMMs were being added on a server motherboard. As this trade-off between performance and capacity represents a dilemma to many memory-hungry server applications, GIGABYTE offers a unique solution. All our motherboards based on the LGA 2011-3 socket support by default a maximum frequency of 2400 MHz in any memory configuration.

Easy BIOS Update

Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):

  • Without having to install CPUs, memory, drives, operating system, etc.
  • Without having to power on the system (but a power supply must be connected)
  • One board at a time via our IPMI 2.0 web interface
  • Multiple boards simultaneously via command line

Download the Easy BIOS Update user guide here.

Remote System Management

This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:

  • Remote Boot & Reset
  • Remote Image Mounting
  • Full Control Over Network, Users, Services, etc.
  • Complete System Monitoring & Diagnostics

Download the Server Management Console user guide here.

The Best Components Only

  • All IR Power Design

    The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.

  • OS-CON Capacitors

    With a service life of a minimum of 50,000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.

  • High End Ferrite Core Chokes

    The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.

Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

VMware Technology Alliance Partner

Recognized as an Advanced Partner in VMware’s Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
