Intel® Xeon® Processor E5-2600 V4/ V3 Product Family
Based on the Haswell microarchitecture, these new Intel processor families bring a whole new set of performance boosting features. In addition to the usual boost in frequencies and core numbers, the Intel Xeon processor E5-2600 V4/ V3 product family are the first in the industry to support the DDR4 memory technology.
Moreover, these new processors include encryption performance overhead reduction features, and technologies improving run time and migration VM integrity.

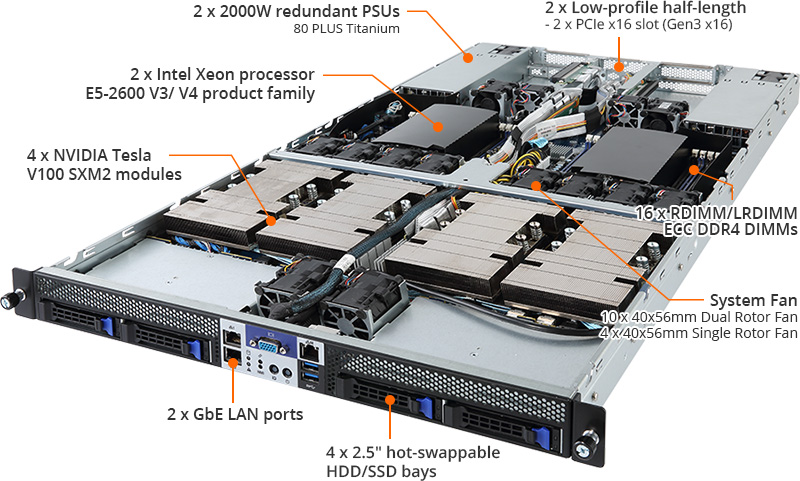

G190-G30 Product Overview

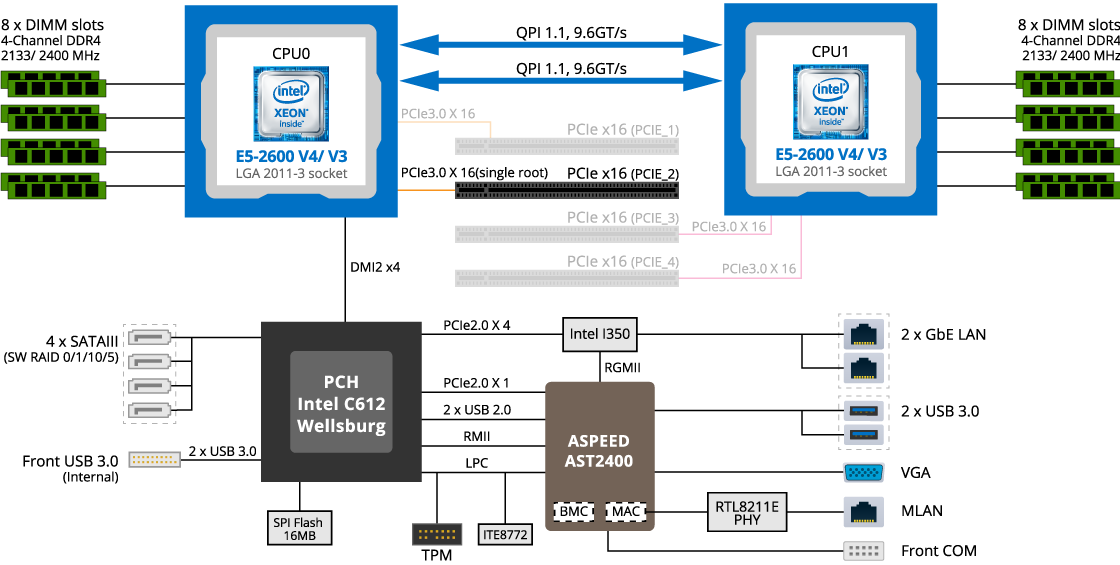

MG30-NV0 Motherboard Block Diagram

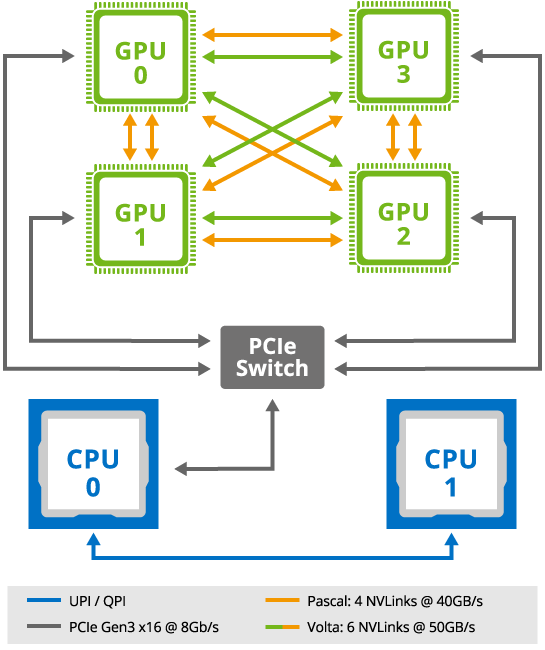

NVIDIA® NVLink™ for Maximum Throughput and GPU-to-GPU Acceleration
NVIDIA®’s NVLink™ interconnection technology for SXM2 form factor GPUs allows for higher bandwidth, more links, and improved scalability of multi-GPU and multi-GPU/CPU server systems. For example, a single NVIDIA Tesla® Volta Series GPU can support up to six NVLink links @ 25 GB/s per link in each direction, equaling a total bandwidth of 300 GB/s – 10 times the bandwidth of PCIe 3. The higher bandwidth and reduced latency provided by NVLINK allows the G190-G30 to meet the ever larger demands of machine intelligence and deep learning workloads.
DDR4 Memory Support
The Intel Xeon E5-2600 V4/ V3 product families are the first wave of server processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:
Get the Memory Performance Edge
On the previous server platforms from Intel, the maximum supported memory frequency has always been automatically downgraded by design when more DIMMs were being added on a server motherboard. As this trade-off between performance and capacity represents a dilemma to many memory-hungry server applications, GIGABYTE offers a unique solution. All our motherboards based on the LGA 2011-3 socket support by default a maximum frequency of 2400 MHz in any memory configuration.
Easy BIOS Update
Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):
- Without having to install CPUs, memory, drives, operating system, etc.
- Without having to power on the system (but a power supply must be connected)
- One board at a time via our IPMI 2.0 web interface
- Multiple boards simultaneously via command line
Download the Easy BIOS Update user guide here.
Remote System Management
This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:
- Remote Boot & Reset
- Remote Image Mounting
- Full Control Over Network, Users, Services, etc.
- Complete System Monitoring & Diagnostics
Download the Server Management Console user guide here.
The Best Components Only
All IR Power Design
The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.
With a service life of a minimum of 50,000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.
High End Ferrite Core Chokes
The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.

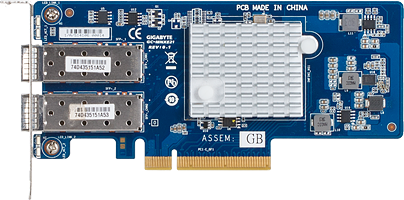

10GbE LAN Card

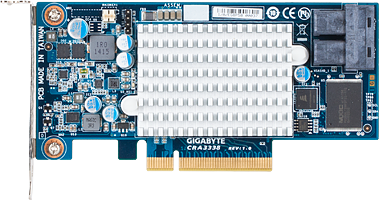

SAS 12Gb/s Card
GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).
VMware Technology Alliance Partner
Recognized as an Advanced Partner in VMware’s Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.
Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
