Red Barn Cerberus AMD DP 2U 4 Nodes Server

From: $19,562.75

HCI Server – AMD DP 2U 4 Nodes Server | Application: HCI & Hybrid/Private Cloud Server
  • 2U – 4 nodes rear access server system
  • Dual AMD EPYC™ 7003 series processor family
  • 8 x LGA 4094 sockets
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs
  • 8 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 4 x Dedicated management ports
  • 1 x CMC global management port
  • 24 x 2.5″ SATA/SAS hot-swappable HDD/SSD bays
  • 8 x M.2 with PCIe Gen3 x4 interface
  • 8 x Low profile PCIe Gen4 x16 expansion slots
  • 4 x OCP 2.0 Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller
  • 2200W (240V) 80 PLUS Platinum redundant PSU

SKU: AR8-2S24H8M-GB Categories: , Tags: , , , , Brand:

Description

HCI Server – AMD DP 2U 4 Nodes Server
  • 2U – 4 nodes rear access server system
  • Dual AMD EPYC™ 7003 series processor family
  • 8 x LGA 4094 sockets
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs
  • 8 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 4 x Dedicated management ports
  • 1 x CMC global management port
  • 24 x 2.5″ SATA/SAS hot-swappable HDD/SSD bays
  • 8 x M.2 with PCIe Gen3 x4 interface
  • 8 x Low profile PCIe Gen4 x16 expansion slots
  • 4 x OCP 2.0 Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller
  • 2200W (240V) 80 PLUS Platinum redundant PSU

Architecture for Modern Data Centers

AMD EPYC™ 7003 Series Processors

GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.

  • Up to 64 Cores
  • 8 Channels of DDR4-3200
  • Up to 4TB Memory Capacity
  • 128 lanes PCIe 4.0
  • 2-way SMT & Turbo Boost
  • 4,6,8-channel Memory Interleave
  • Synchronized Fabric and Memory Clock Speeds
  • Secure Memory Encryption
  • Secure Encrypted Virtualization

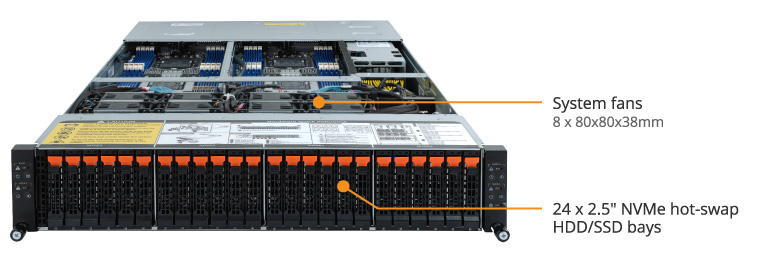

H262-Z61 Product Overview

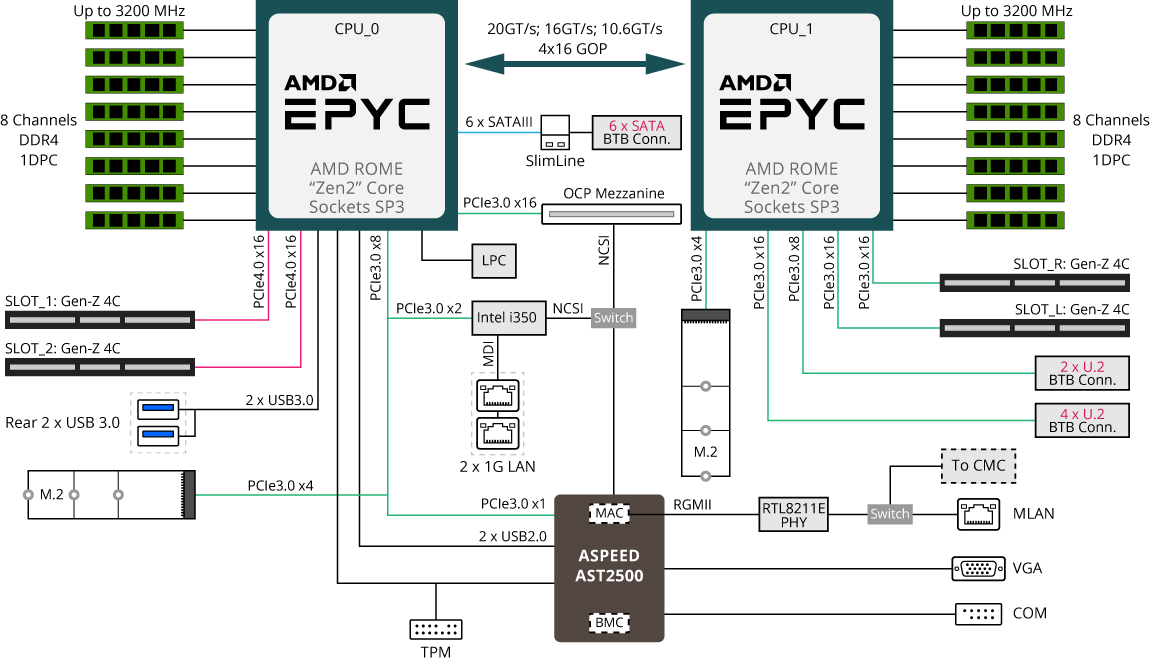

H262-Z61 System Block Diagram
